Stainless Steel Ferrule Fittings

Stainless Steel Ferrule Fittings are the best way to hold your tubes and pipes stable. It creates a consistent pressure between two pipes and tubes for a better grip and protection. The stable pipe connection can be expanded into pipe lines for longer traveling of the substance. Stainless Steel is the best possible metal alloy to have. It presents with a list of features and benefits no other metal and alloy gives.

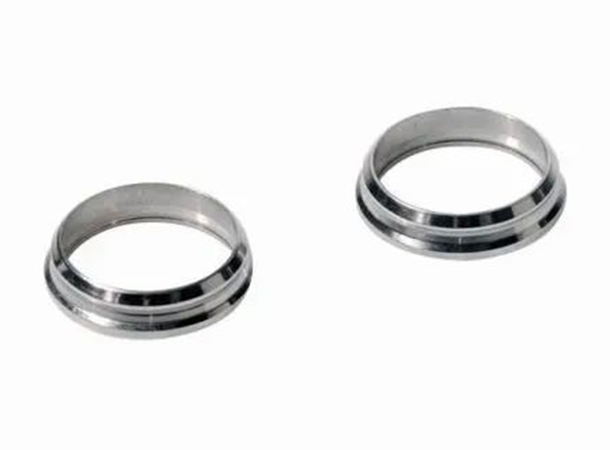

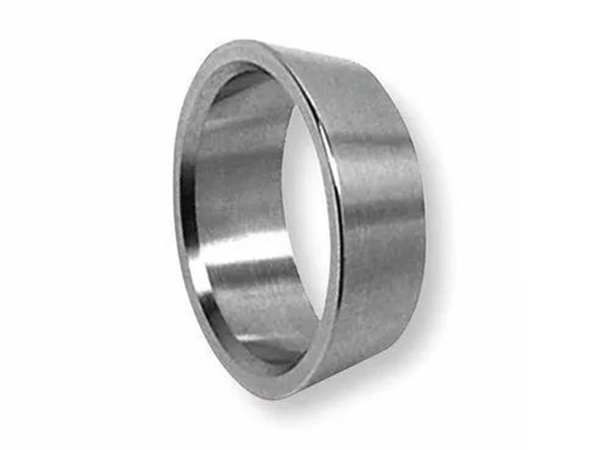

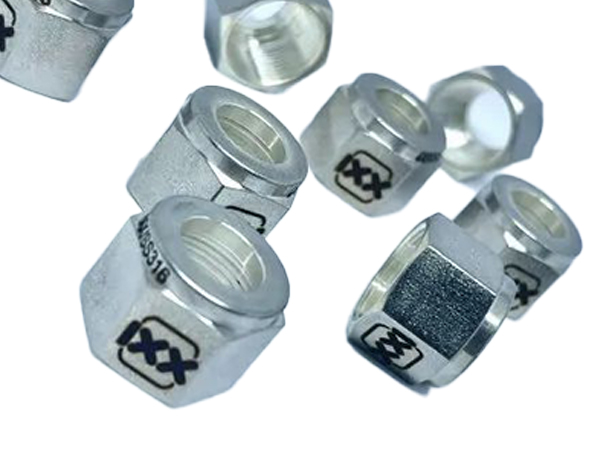

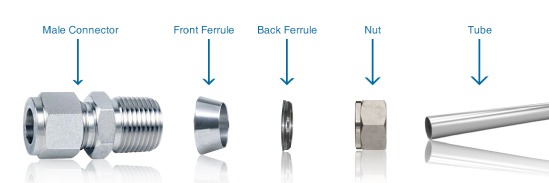

There are four key types of Ferrule Fittings or Double Ferrule Fittings. Each key type consists of further options. Stainless Steel twin ferrule fittings consist of the Nut, Back Ferrule, Front Ferrule and the Body. The Stainless Hose Ferrule is then added, becoming the five-piece connection. The tube attached to the ferrule connection with Stainless Steel Twin Ferrule Compression Fittings, the result is brought down to a solid leak free joint.

Ferrule Fittings, especially stainless steel double ferrule fittings are best used by multiple industries. It is mainly applicable for a longer pipe line creating a secure and strong hold between each pipe and tube connected. As a leading SS Ferrule fittings manufacturer in India, we recommend stainless steel double ferrule fittings. It comes in several grades of fittings, especially in stainless steel, that can be more benefitting to enterprises for the various features it offers.

Application of SS Ferrule Fittings:

Ferrule Fittings are used in plenty of industries. The leading industries are:

  • Pulp and Paper
  • Laboratories
  • Downstream Petrochemicals
  • Aeronautical
  • Shipbuildings
  • Defence Industry
  • And Plenty More.

Features of Stainless Steel Ferrule Fittings

Having the Ferrule Fittings made of stainless steel adds tons of more features in this list. Ferrule fittings secures the long running tube and pipe lines. It is an advanced function to combine the two ends of the pipe, leaving no gaps. Stainless Steels add the benefits of no corrosion, better stability and easy handling of pressure.

  • Working in 6000 psi
  • Easy to Retight
  • Precision with the Correct Sizes
  • Multiple Configuration Available
  • Functionable in Wide Range of Temperature
  • Wide Variety of Sizes
  • Leak Proof and Interlocking System.

Stainless Steel Ferrule Fitting Size

Fractional Tube

Size: 1/16 to 1 1/2

Pressure Rating: 3000 psi to 10000 psi

Threads: NPT, BSPT, BSPP

Metric Tube.

Size: 2 to 38 mm

Pressure Rating: 3000 psi to 10000 psi

Threads: NPT, BSPT, BSPP

Stainless Steel Ferrule Fittings Specifications


ASTM A276, ASTM A182, ASME A 276, ASME A182

Types of Stainless Steel

  • SS316
  • SS316L
  • SS304
  • SS304L
  • Brass
  • CS
  • Monel

Types of Stainless Steel Single/Double/Triple Ferrule Fittings

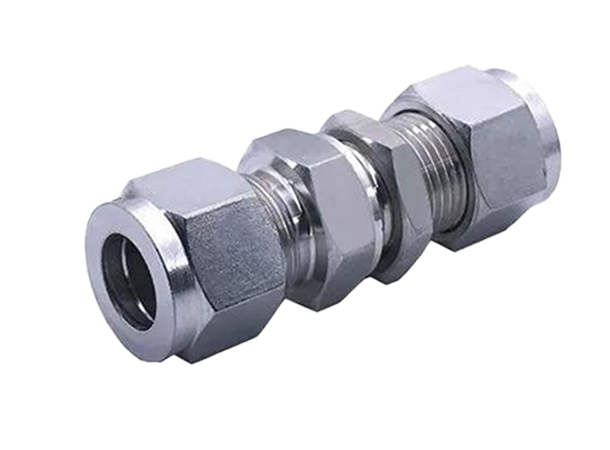

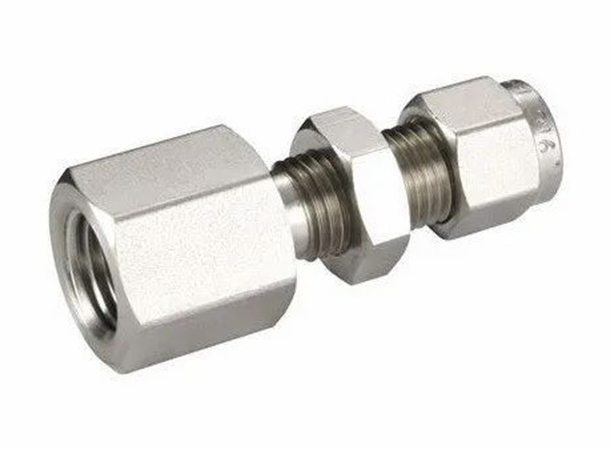

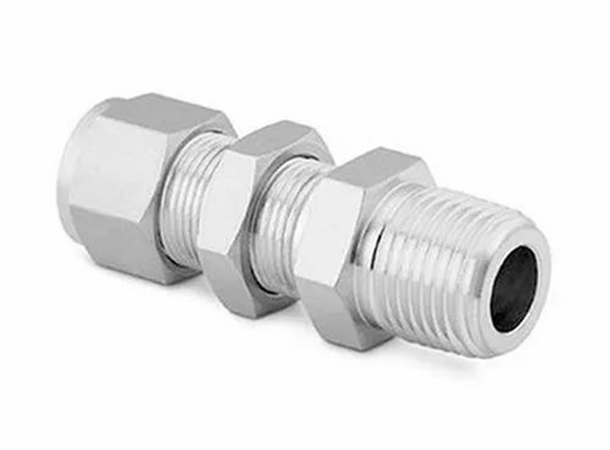

  • Stainless Steel Compression Bulkhead Male Connector Double Ferrule Union Fittings

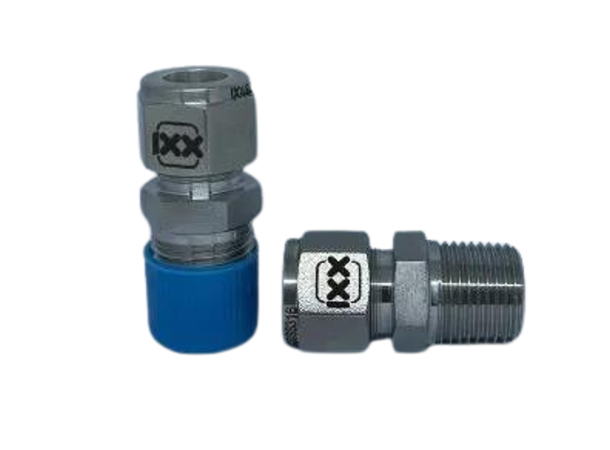

  • SS Two Ferrule Male Connector Fittings

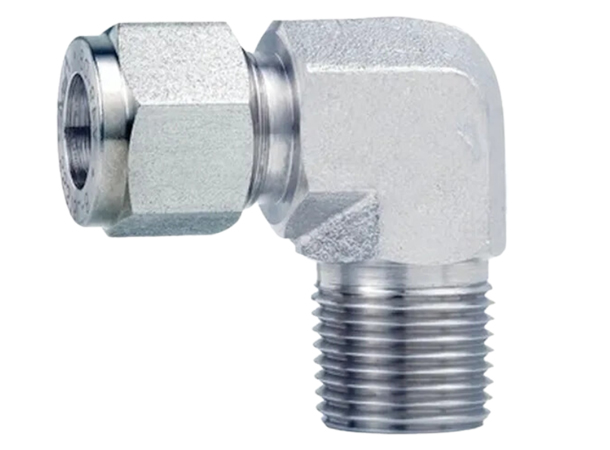

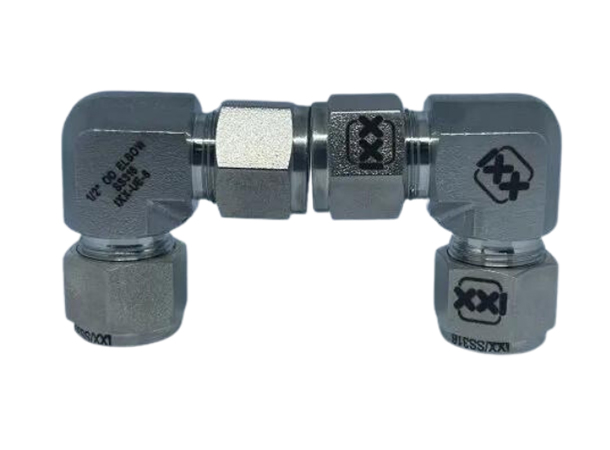

  • Doubles Ferrule Female Elbow Tube Fittings

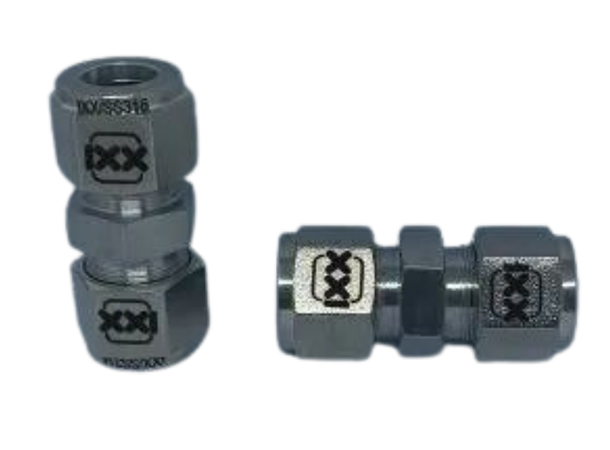

  • Male Straight Stainless Steel Ferrule Union
  • Stainless Steel Double Ferrule Tube Fittings
  • SS Compression Hydraulic Ferrule Fittings
  • Stainless Steel Twin Ferrule Fittings
  • SS Single Ferrule Fittings
  • SS Straight Double Ferrule Tube Fittings
  • SS Compression Ferrule Fittings
  • SS High Pressure Double Ferrule Tube Fittings
  • 3/8 Inch SS Double Ferrule Tube Fittings

Instrumxx is the leading tube fittings manufacturer in India. Each of our products undergo quality control checkups for the finest availability of product. We have a wide range of products when it comes to pipe and tube fittings, especially Instrumentation Fittings, Ferrule Fittings, Forged Pipe Fittings and furthermore products.
