Air Header

Air Header Manufacturer in India | Air Header Manifolds, Air Header Valves, Manufacturer, Supplier, and Exporter

At Instrumxx Industries, we feature an extensive range of high-quality air headers, air header manifolds, and air header valves. Air headers act as a distribution and control channel for compressed air through different outlets in an industrial plant. They consist of fabricated pipes, reducers, flanges, nipples, and more per design and assembly requirements.

As a leading air header manufacturer, supplier, and exporter, we ensure our products adhere to global compliance and international standards. These air headers find applications as compressed air distribution instruments in different industries.

Witness extensive quality and global adaptability

At Instrumxx Industries, we commit to offering products that comply with international quality standards, comprehensive varieties, and availability. As a leading air header manifolds and air header exporter, we provide different air header accessories like air header valves.

Our products are a prime example of our standard manufacturing practices, quality material selection, and stringent quality checks. In addition, our products come in variable sizes, materials, and configurations.

These air headers and air header manifolds are available in stainless steel, carbon steel, and hot-dip galvanized carbon steel. These products comply with international standards accompanied by essential certificates.

Air Header Manifold | Manufacturer Of Air Header Manifold | Air Header Manufacturers In India | Compressed Air Header Pipe Traders | 4 Way Air Header Price In India | exporter Of Spider Type Air Header | Header Air Stockist In Mumbai | Instrument Air Manifold | Air Headers Distribution | Manifolds Suppliers| Air Distribution Manifold| Air Filter Header Dealer| Compressed Air Header Suppliers | 6 Way Air Header Manufacturer In India | Air Manifold With Valves.

How does it work?

Air header or air header manifolds are essential for directing the instrument air from its source to different channels using pipelines. The flanges or threads at the inlets or these headers connect to the air source. After connection, the fluids are sent via the air header pipeline to essential instruments. Air headers ensure cost-efficient and simplified distribution of air with their extensive construction.

Instrumxx air headers are available in a wide array of configurations based on end-user requirements such as:
  • NPT
  • BSP
  • Butt Weld Flanged
  • Socket Weld
  • Compression outlets

Why Instrumxx Industries?

Air headers are crucial when working with compressed steam, air, and more. While working with pressurized fluids, safety assurance is highly essential. At Instrumxx Industries, as a leading air header supplier, we ensure a safe and reliable product range. Our air headers and manifolds offer simple yet leak-proof installation, ensuring operator and project safety. The products also require minimal maintenance and facilitate easier disassembly.

Explore our globally applicable air headers and manifolds range.

Isntrumxx Industries features air headers with multiple valve inlets and outlets, allowing users to save on cost. They also come with a variety of end connections. Given these features, our air header finds application in pharmaceutical, chemical, textile, and electrical industries.

As an air header manifold supplier, we guarantee quality products that pass different pneumatic and hydraulic pressure tests. Moreover, they are also customizable as per customer requirements for material, compact designs, and dimensions.

Air Header | Air Header Price | Air header manifold | Instrument air manifold | Instrument air header | Air header manufacturer | Air header manufacturers India | Air Distribution Manifolds | Air header supplier in India

What more?

Instrumxx Industries is a global air header manufacturer, supplier, and exporter featuring different air header designs. The company follows technologically advanced manufacturing processes to comply with international standards. Experts at Instrumxx Industries guarantee timely delivery, installation assistance, and product guidance. Explore their air headers, manifolds, and air header valves today!

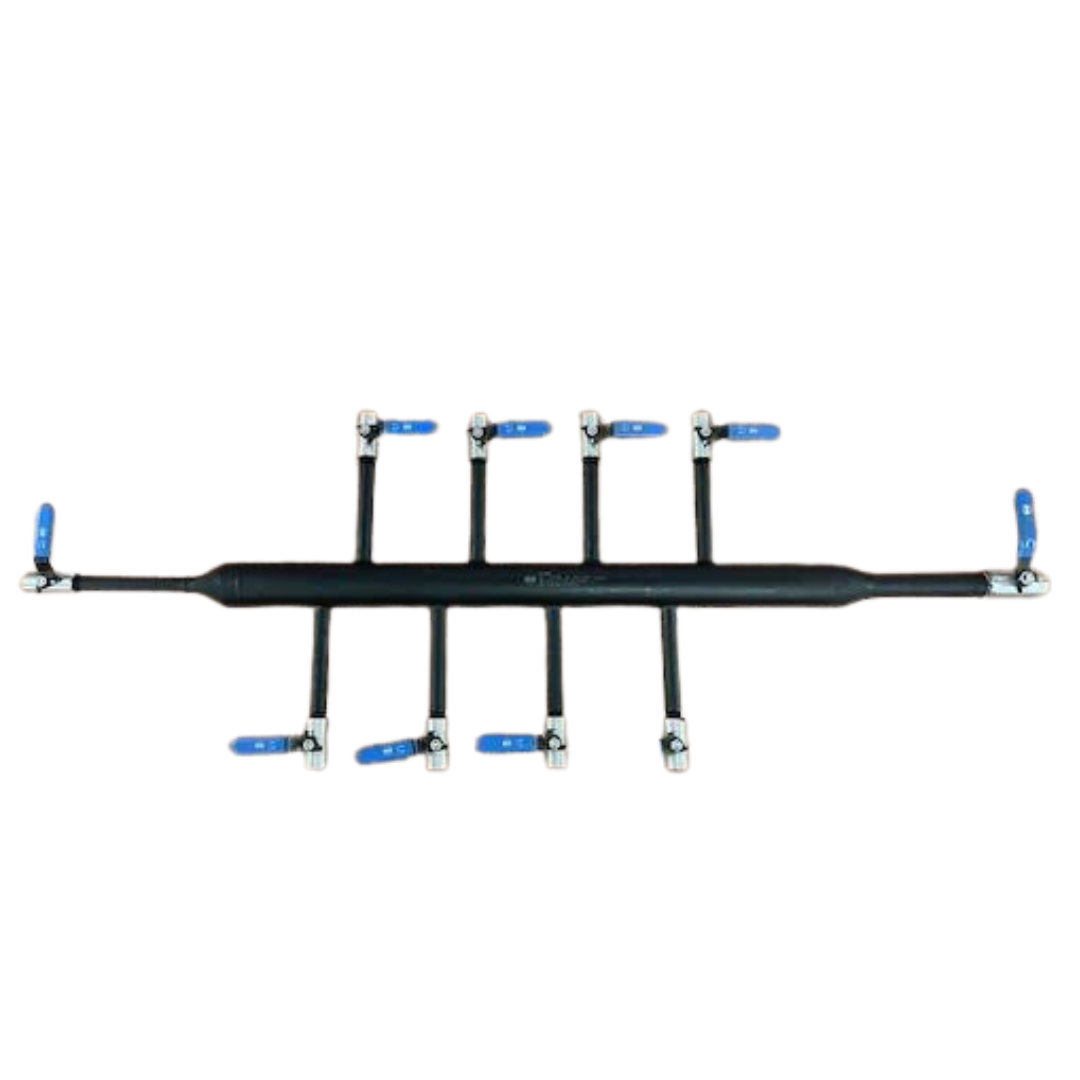

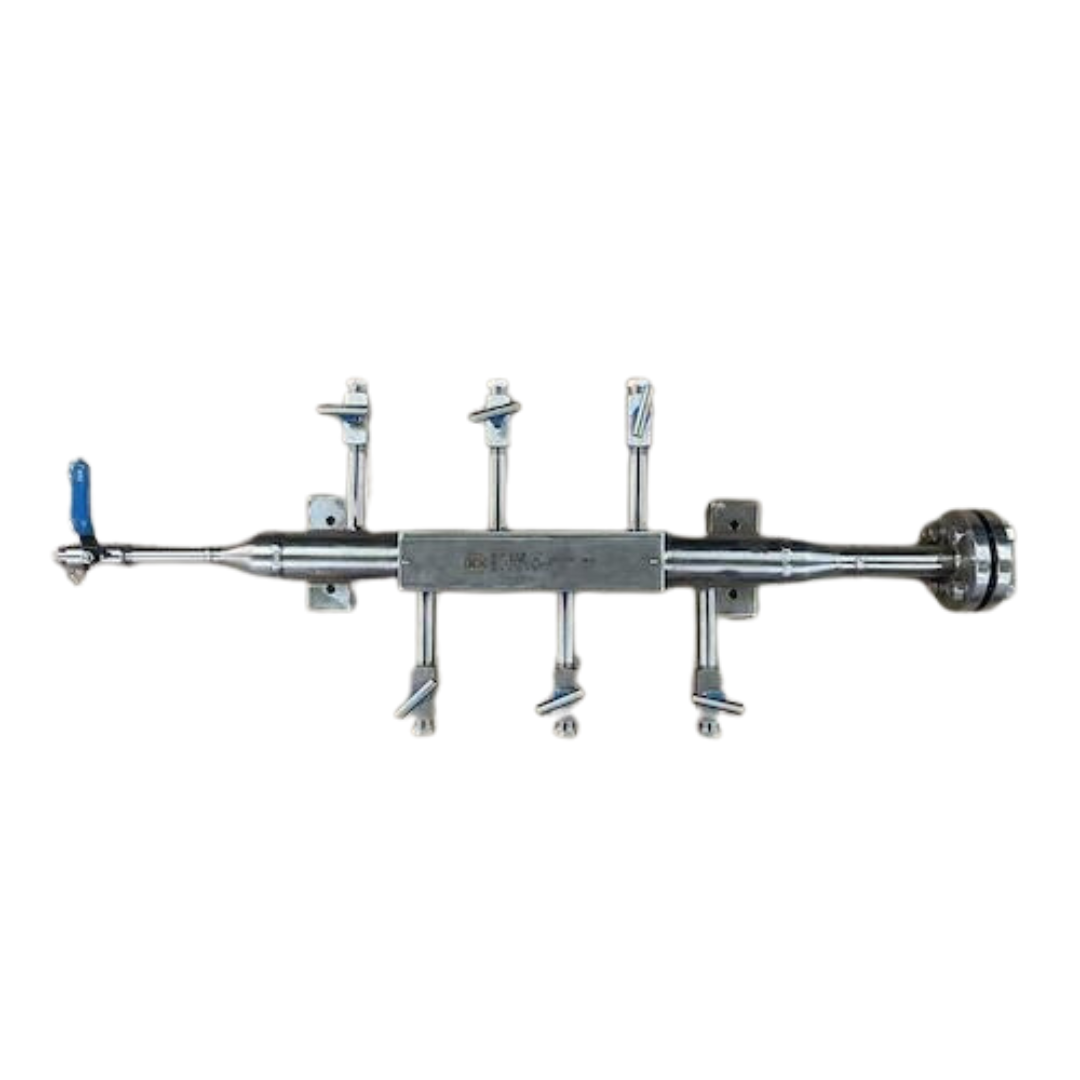

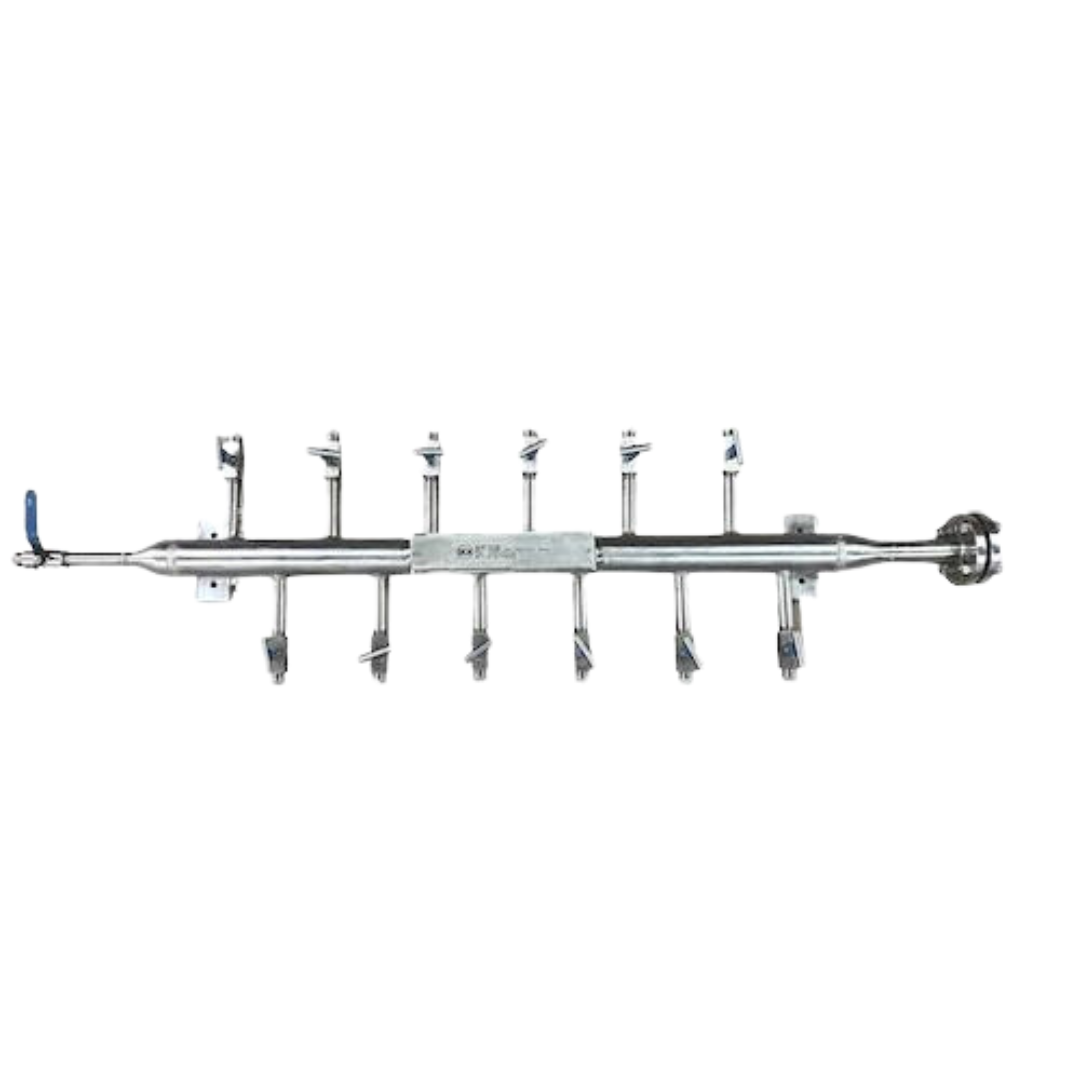

Air Header

Specification

  • Material of Construction (MOC): Stainless Steel, Carbon Steel, Hot Dip Galvanize Carbon Steel.

Description

  • Header Pipe: Air Header Pipe constructed from Seamless Pipe, size 1-1/2" & 2" NB schedule 40 and 80. Caps or Reducers welded to the pipe is manufactured from forge material.
  • Inlet Connection: Flange or three piece union type connection.
  • Outlet Connection: 4, 6, 8, 10, 12, 16, 18 or as per customer requirement. This outlet Connection are provided with IXX make Ball or Needle Valve of 1/4", 3/8", 1/2" sizes. Nipple used for all the above connections are manufactured from seamless pipe.
  • Drain Connection: 1/2" or 1" Ball Valve ,Needle Valve, Gate Valve, Globe Valve as per customer requirement.
  • Mounting: Bracket can be provide as option.
  • Testing: Air Headers are tested at 150 PSI Pneumatically and 1000 PSI Hydraulically.

Illustration

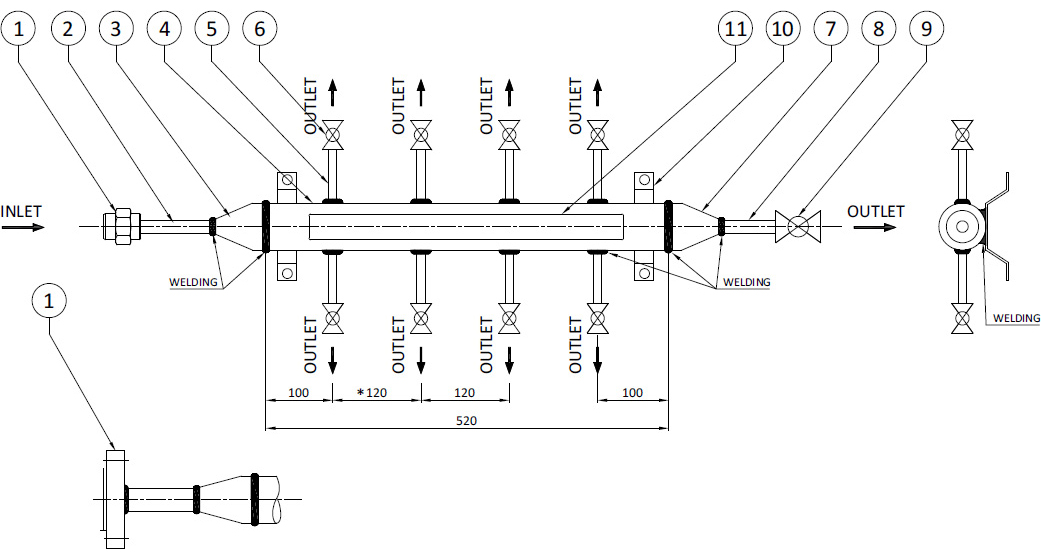

Air Header Illustration
NOTES:
100mm DISTANCE FOR 1/4" BALL VALVE & 120mm DISTANCE FOR 1/2" BALL VALVE & 80mm DISTANCE FOR 1/4" NEEDLE VALVE & 120mm DISTANCE FOR 1/2" NEEDLE VALVE.
SR.NO. DESCRIPTION SIZE MATERIAL QTY.
1 FLANGE / THREE PIECE UNION 1"x150#, RF / 1" SCRD SS 316 1
2 NIPPLE (50mm LONG) 1 "NPTMxPLAIN SS 316 1
3 CONCENTRIC REDUCER 2"BWx1"BW, SCH40 SS 316 1
4 PIPE (560mm LONG) 50NB x SCH40, SMLS SS 316 1
5 NIPPLE (50mm LONG) 1/4 "NPTMxPLAIN SS 316 8
6 BALL VALVE 1/4"NPTF SS 316 8
7 CONCENTRIC REDUCER 2"BWx1/2"BW, SCH40 SS 316 1
8 NIPPLE (50mm LONG) 1/2 "NPTMxPLAIN SS 316 1
9 BALL VALVE 1/2"NPTF SS 316 1
10 BRACKET FOR MOUNTING ----------------------- S.S. 2
11 TAG PLATE ----------------------- S.S. 1

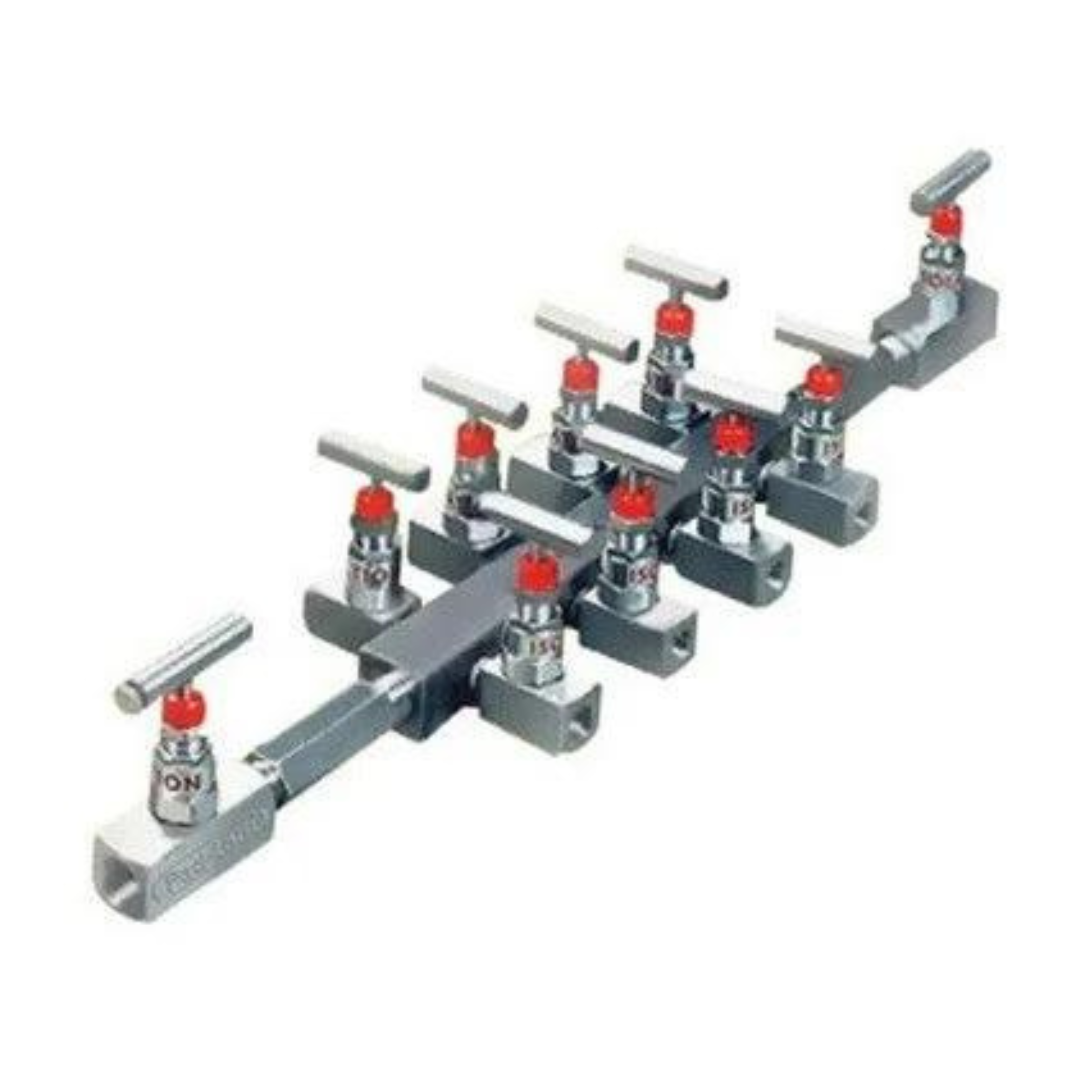

Air Header - Bar Stock Type

Specification

  • Material of Construction (MOC): Stainless Steel, Carbon Steel.

Description

  • Header Pipe: Air Header body constructed from Bar stock.
  • Inlet Connection: 1/2", 3/4" NPTF threaded type connection.
  • Outlet Connection: 4, 6, 8, 10, 12, 16 or as per customer requirement. This outlet Connection 1/4"NPTF are provided with IXX make Needle Valve Bonnet Assembly.
  • Drain Connection: 1/2" NPTF.
  • Mounting: Bracket can be provide as option.
  • (Recommended for High Pressure above #3000 PSI)

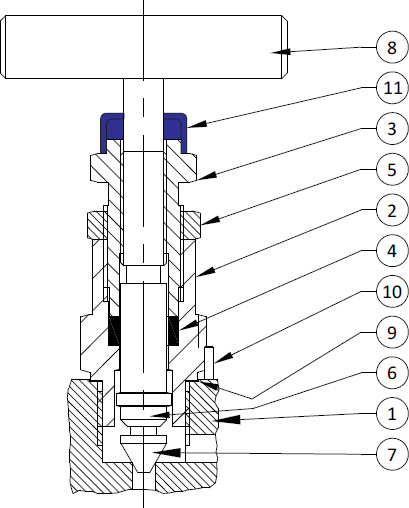

Illustration for SS316 Assembly

SR.NO. DESCRIPTION QTY. MATERIAL
1 BODY 1 S.S.316
2 BONNET 1 S.S.316
3 GLAND RETAINER 1 S.S.304
4 GLAND SEAL 2 PTFE
5 CHECK NUT 1 S.S.304
6 STEM 1 S.S.316
7 TIP 1 S.S.316
8 HANDLE 1 S.S.
9 WASHER 1 S.S.
10 LOCK PIN 1 S.S.
11 DUST CAP 1 PVC

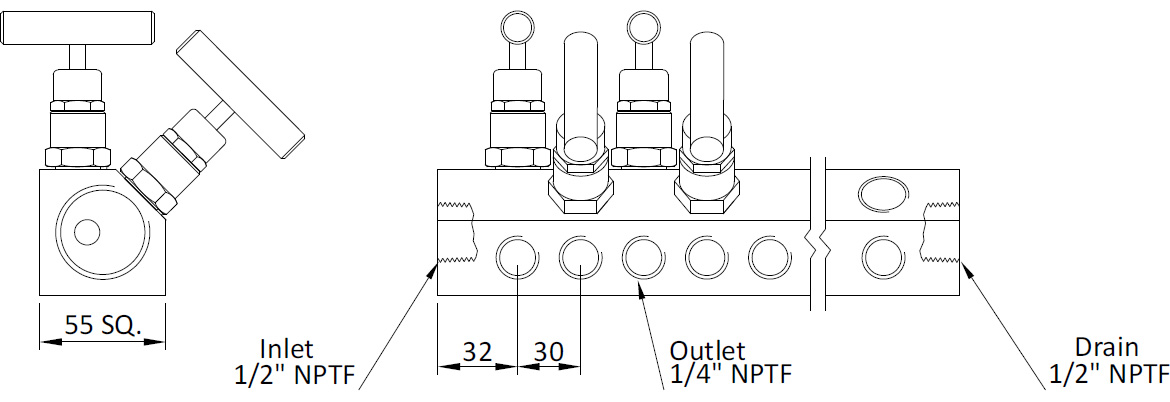

Illustration

Air Header - Bar Stock Type

Bonnet Assembly

Bonnet Assembly
