Manifold

Experience robust and reliable product applications with Instrumxx

Instrumxx Industries features an extensive range of manifolds like 2-way, 3-way, and 5-way manifolds. They are available in materials like A105, SS 304, SS 316, A182 F316/ F321, Monel, Hastelloy, etc.

The pipe and pipe fitting accessories are available with thread fittings like NPT, BSPT, and BSP. Instrumxx Industries also offers customers different inlet, outlet, drain connection options, gland packing options, and temperature ratings. As a reputed manifold and other pipes fitting supplier, we also offer different mounting accessories with these manifolds.

How does it work?

Manifolds offer greater flexibility because they come with a variety of simple configurations of an easy block, bleed, and calibration of static pressure transmitter, differential pressure transmitter, pressure transmitter, pressure switch, and gauges. Their flow is controlled by a needle valve.

Why Instrumxx Industries?

Manifolds are essential in the piping industry to facilitate fluid transportation. These are crucial elements in the piping system and are prone to corrosion. Hence, it is essential to opt for high-quality materials for manifolds. Instrumxx Industries is a notable manifold manufacturer in India, utilizing high-quality raw materials. Our manifolds work well in a corrosive environment and ensure durability. They also facilitate ease of maintenance, assembly, and disassembly.

Explore our manifold range with international compatibility

Each manifold valve has a specific function to isolate the pressure, bleed off pressure, or equalize the pressure, depending on its location on the manifold. Instrumxx Industries features the following manifold types:

2 Way Manifolds: These instruments come with one or more valves, which can be connected to a transmitter. These are specially designed manifolds to be mounted to a pressure transmitter. They are mostly made of stainless steel, carbon steel, or alloys. 2-way manifolds can be a perfect alternative to multi-valve systems.

3 way Manifold: The 3-valve hard seat manifold designed for instrument calibration incorporates two shut-off valves and an equalizing valve in a single body. The manifold features a valve body manufactured from extruded solid bar, robust stems, and bonnets pinned for safety.

5 way Manifold: Like 3-way valve manifolds, our 5-way manifolds find applications for differential pressure transmitters. The 5-way valve manifold consists of 2 block valves, 1 equalizer valve, and 2 vent or test valves.

What more?

Instrumxx Industries is the top name among manifolds manufacturers, suppliers, and exporters featuring designs like 2-way manifolds, 3-way manifolds, 5-way manifolds, coplanar, and mono flange valves, etc.

We offer technologically advanced pipe and pipe fitting products utilizing high-quality raw materials. Experts at Instrumxx Industries help customers with product selection right and material guidance. In addition to great product quality, we also offer timely delivery, installation assistance, and overall customer support. Explore our product range today!

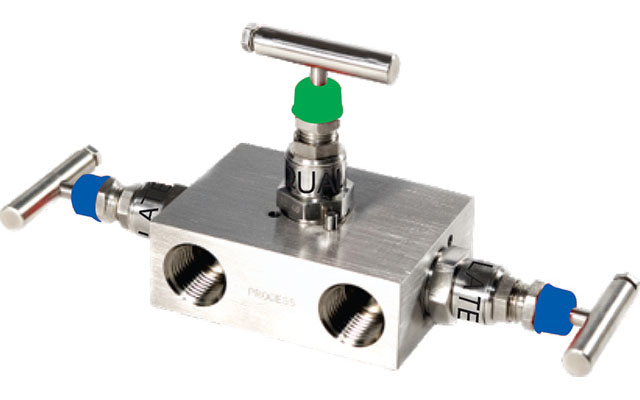

SEPARATELY MOUNTED MANIFOLD

Manifolds are mounted away from Instruments and are usually connected by means of tubes / tube fittings, pipe / pipe fittings.

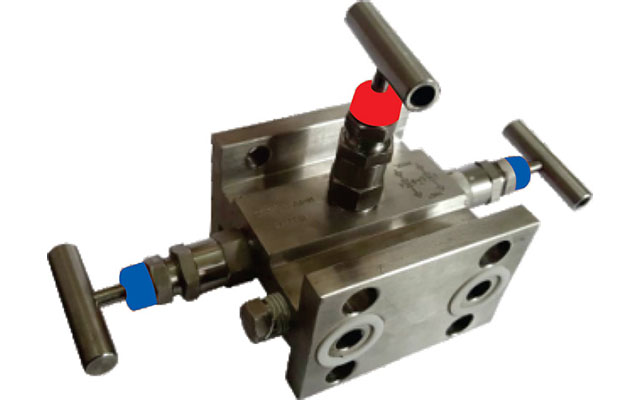

H-TYPE MANIFOLD

Are meant for direct mounting for stacking between the Instrument and flanged Process connection.

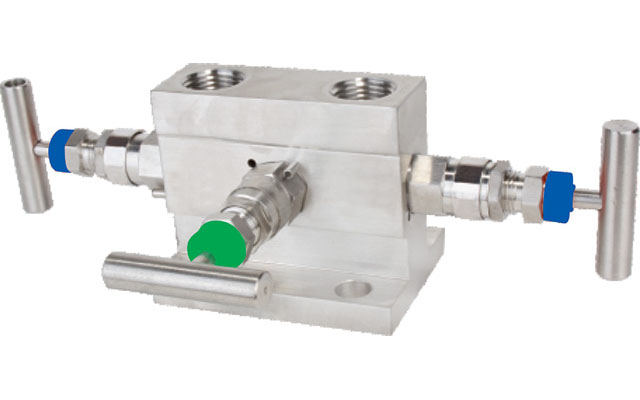

T-TYPE MANIFOLD

Are meant for direct mounting on the Instrument and screwed process connection. these can be provided with drain ports on the Instrument side for draining of the Process and Instrument lines respectively.

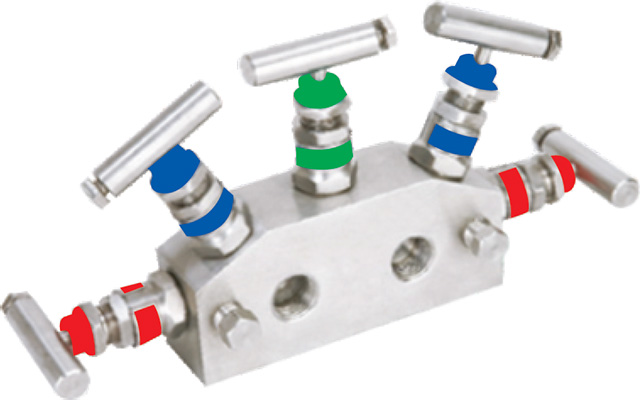

COPLANAR MANIFOLD

Are meant for direct mounting on to the Instrument eliminating the adaptor flanges.
