Condensate Pot

Condensate Pot Manufacturer in India

Condensate pots are important components of business procedures, mainly those that use steam for heating. A condensate pot is critical for accumulating and holding condensate, a condensed shape of steam. It contributes to the overall performance and capability of steam structures. Instrumxx Industries stands out as the most Condensate Pot Manufacturer in India, imparting top-notch solutions to meet the various needs of industrial strategies. As a dependable Condensate Pot Supplier, we take pleasure in handing over meticulously crafted condensate pots, such as the Catch Pot, Condensate Pot with Stand, Four Port Condensate Pot, and Three Port Condensate Pot. Our dedication to surpassing enterprise requirements is clear in our condensate pots' durability, efficiency, and cost-effectiveness.

Our purchaser-centric method presents a seamless experience, allowing you to choose from different grades and types Like precisely matching your undertaking specifications. Contact us today at info@instrumxx.Co.In or sales@instrumxx.Co.In to explore our complete range and elevate your industrial approaches to new heights.

How does a condensate pot work?

Condensate pots need to be installed between set-ups for flow measurement and transmitters to collect condensed fluid during the flow of steam through pipes. It is prominent to install condensate vertically or horizontally per flow lines between the flow meter and transmitter for effective results. These pots enhance the measurement precision and ensure the condensation process in the impulse line will not interfere with the pressure variation sensing and lower gauge line errors.

Instrumxx condensate pots are available in two types of end connection options, namely:
  • Socket weld
  • Screwed

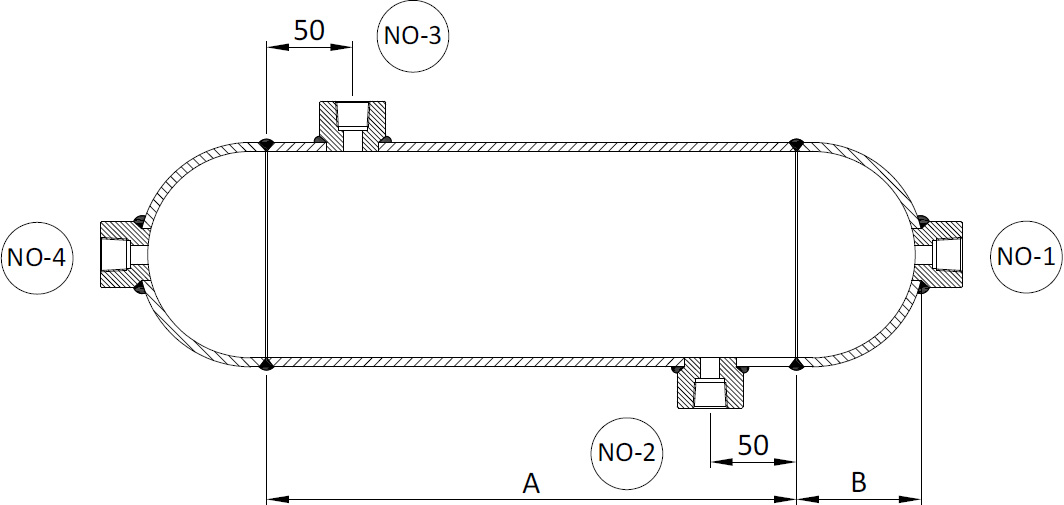

Condensate Pot Illustration

Download Full Catalogue Here

Condensate Pot Specifications


2" NB | 3" NB x Sch 40 | Sch 80 | Sch 160 | Sch XXS


Gas Line, Oil & Gas, Instrumentation Petrochemical, and So on

End Connection

Socket Weld | Screwed

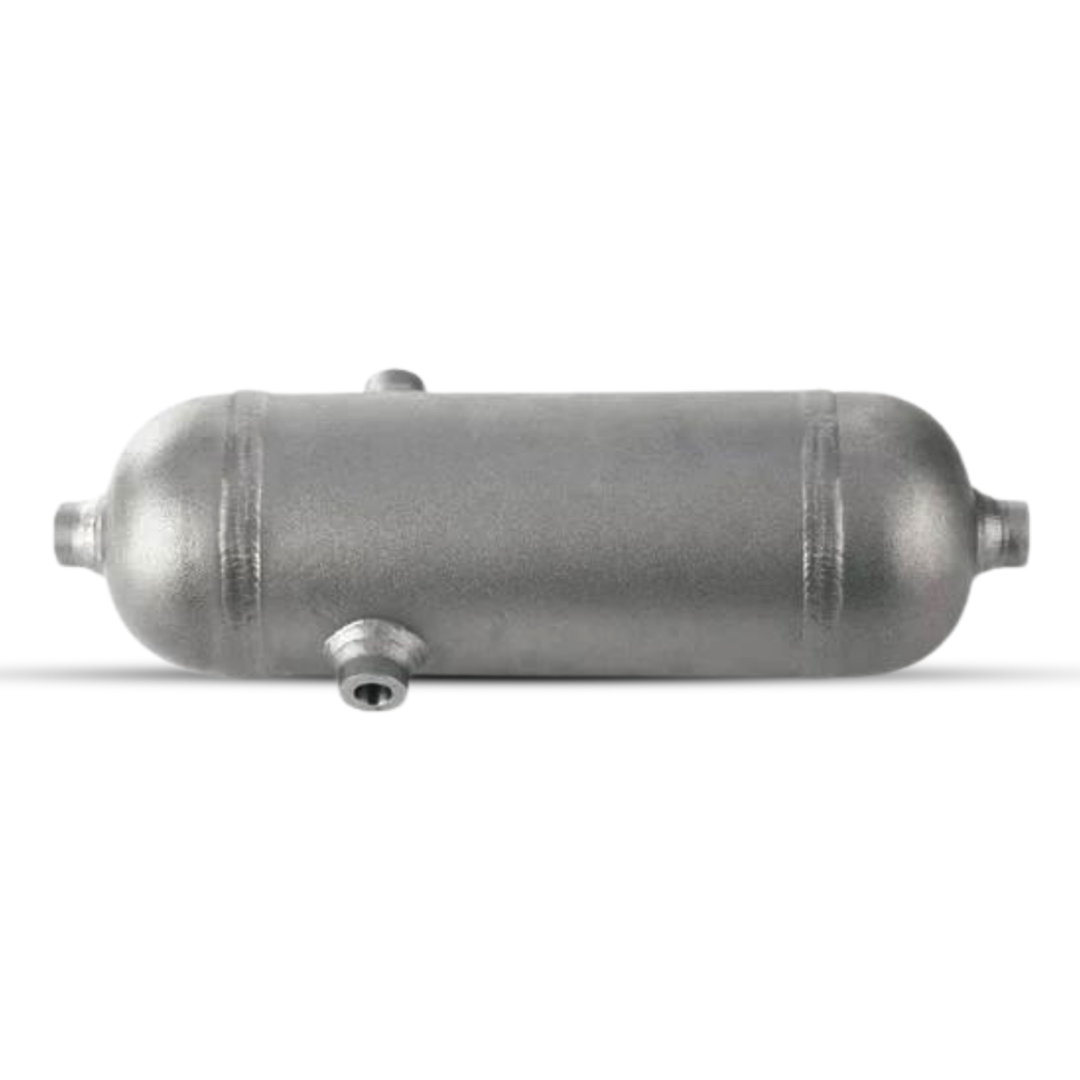

Catch Pot

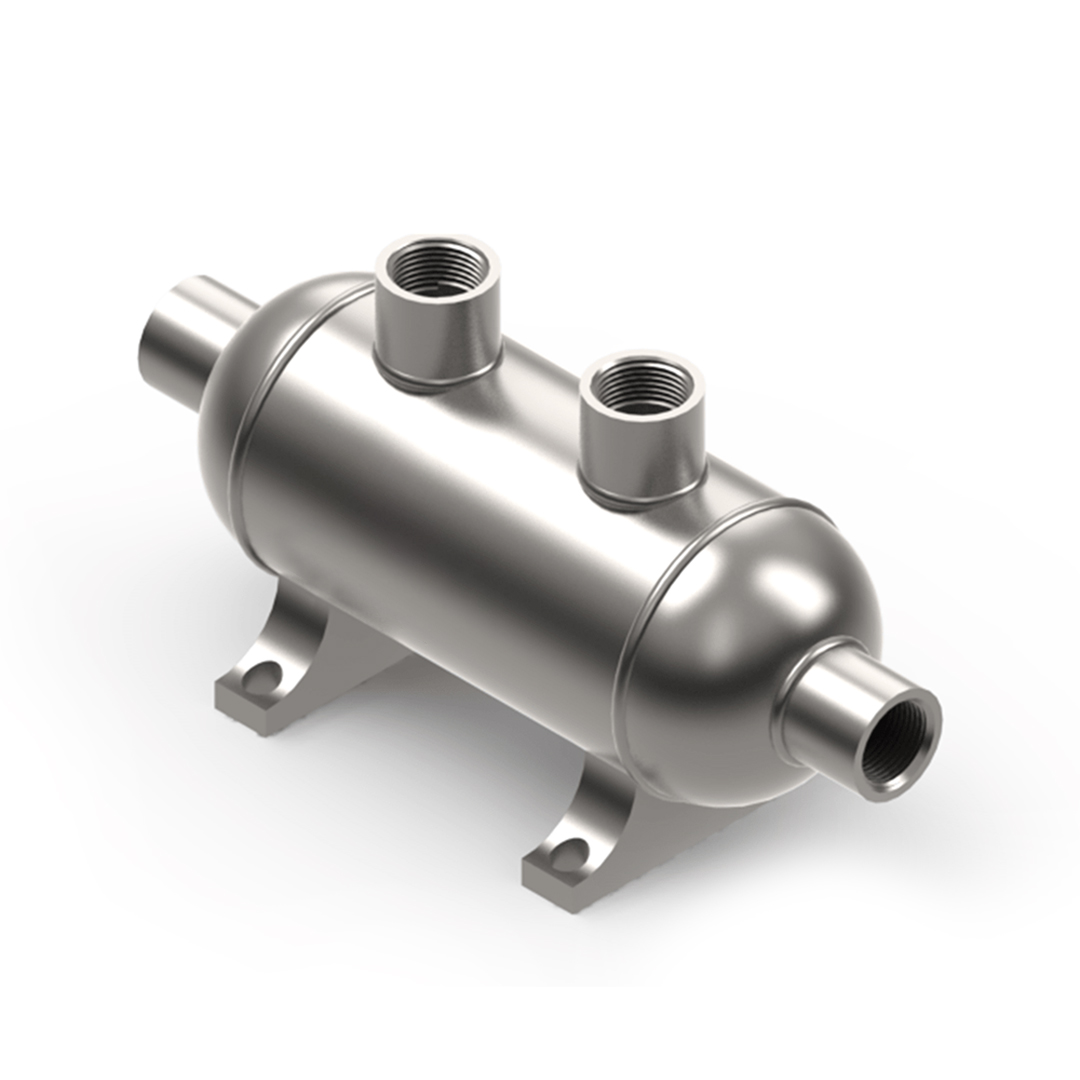

Condensate Pot with Stand

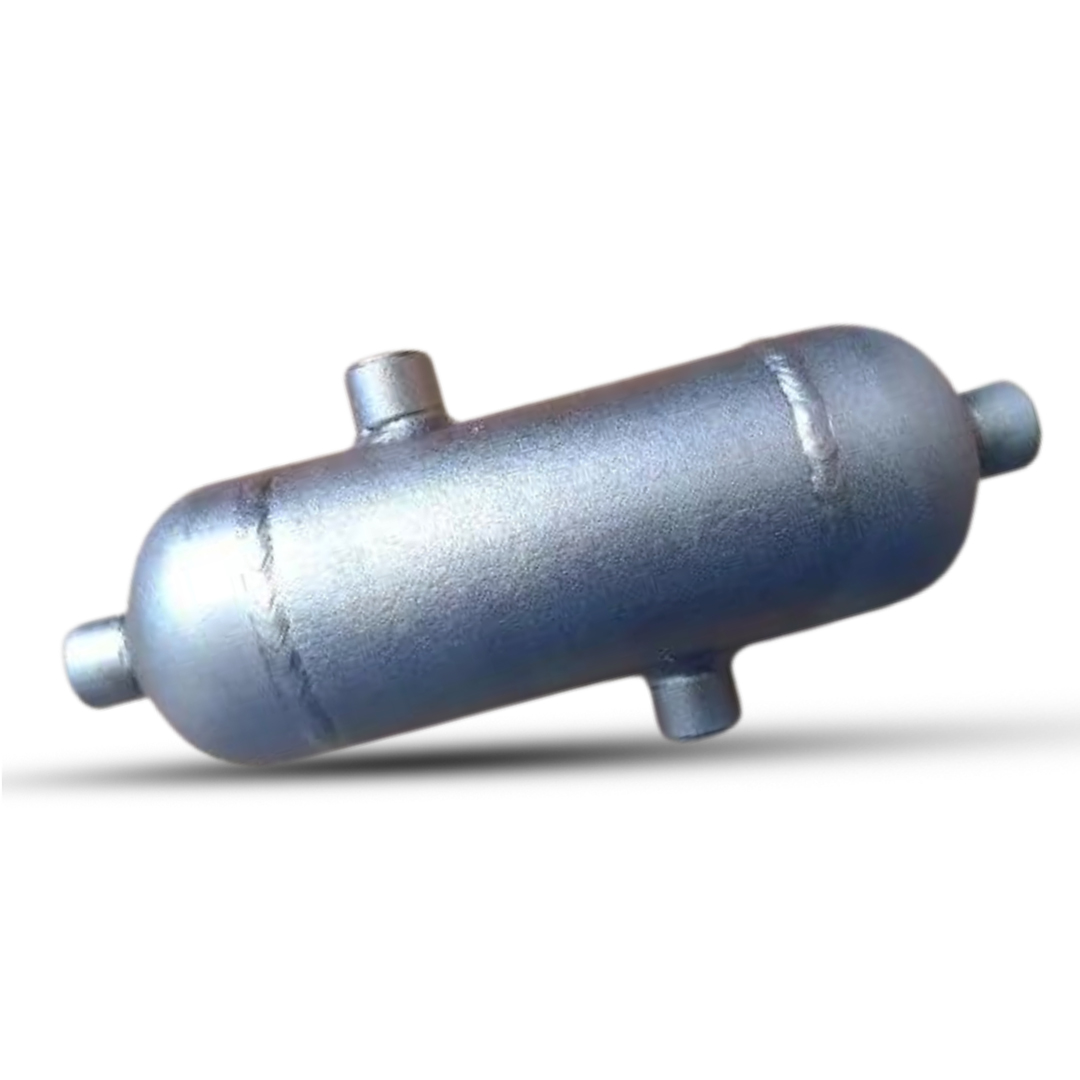

Four Port Condesnate Port

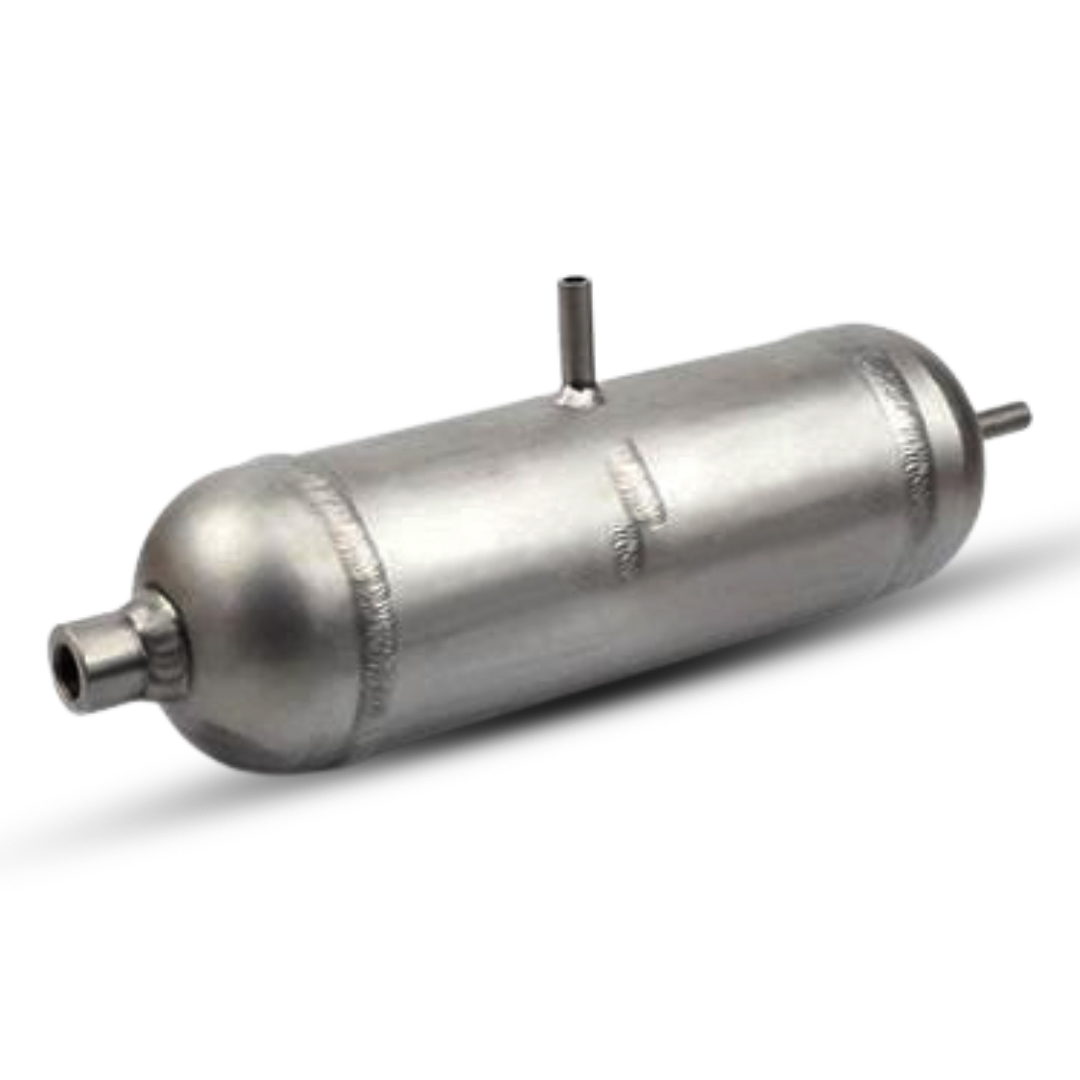

Three Port Condensate Pot



Material Grades

304 | 304L | 316 | 316L | 316TI | 321 | 347H | 310S | 317L | 904L


Stainless Steel, Carbon Steel, Alloy Steel Hastelloy, Duplex Steel and Super Duplex Monel and Inconel

Country of Origin

Made in India

Types of Condensate Pot


Catch Pot Condensate


Condensate Pot with Stand


Four Port Condensate Port


Three Port Condensate Pot

Technical Specification of Condensate Pot


Up to 6,000 psi @ up to 250ºF

Tube Size

3” 4” 6”

Outlet Connections


Inlet Connection


Drain Connection


Pot Connection



Stainless Steel SS, Carbon Steel CS, Alloy Steel Hastelloy, Duplex Steel and Super Duplex Monel, Inconel

other Material Other as Per Your Requirements

Key Features of Condensate Pot

  • Purpose:

    Collects and traps condensate from steam systems.

  • Design:

    Exhibits a cylindrical form with a pinnacle vent and may consist of a backside drain for condensate elimination.

  • Installation:

    Positioned strategically at low points in steam piping for green condensate collection.

  • Isolation:

    Acts as a protective barrier between the steam line and devices/gadgets to prevent damage from water hammer or corrosive condensate.

  • Venting:

    Equipped with a vent to launch non-condensable gases, making sure the most reliable device's overall performance.

  • Connection:

    Linked to the steam line through piping.

  • Insulation:

    Often insulated to minimize heat loss and prevent rapid cooling of condensate.

  • Instrumentation:

    May feature level indicators or sight glasses for easy monitoring of condensate levels.

  • Maintenance:

    Designed for straightforward inspection and maintenance procedures.

  • Pressure Rating:

    Constructed to withstand the pressure within the steam system.

  • Size:

    Available in various sizes to accommodate different capacities of steam systems.

  • Application:

    Widely employed in industrial processes, power plants, and other facilities utilizing steam systems.

  • Prevention of Water Hammer:

    Acts as a buffer to prevent water hammer by managing sudden condensate surges.

  • Corrosion Protection:

    Safeguards instruments and equipment from the corrosive effects of condensate.

Condensate Pot Applications & Uses

The purpose of a condensate pot is to prevent the buildup of water or other liquids in a pipeline, which can cause damage or reduce the efficiency of the system. Here are some of the applications & Uses of Condensate pot
  • Steam systems
  • HVAC systems
  • Chemical processing
  • Oil and gas industry
  • Pharmaceutical industry
  • Power generation
  • Food and beverage industry
  • Mining industry
  • Petrochemical industry and so on

Condensate pot working principle

The working principle of a condensate pot is to collect and hold condensed liquids such as steam or gas, which prevents the buildup of liquid in a pipeline. Condensate pots are installed in a pipeline either horizontally or vertically. When steam or gas enters the condensate pot, it cools down and condenses into liquid, which accumulates in the pot. The liquid drains out of the bottom of the pot and is carried away by the pipeline. This process prevents the accumulation of liquid in the pipeline, which can cause damage or reduce the efficiency of the system. The condensate pot works in conjunction with other devices such as steam traps to control the flow of condensed liquids. Steam traps are used to drain condensate from a pipeline while preventing the escape of steam or gas. The combination of a condensate pot and a steam trap efficiently removes condensed liquids from the pipeline, preventing damage or loss of efficiency.

Condensate Pot Design

Condensate Pots are fabricated from Seamless pipes. Standard pipe sizes are 2″ to 3″. Connection fittings are then installed on Condensate Pots be it NPT or welded socket adaptors, Butt Welds…etc. Condensate Pots Drawing is available for your custom-made needs.

Steam Condensate Pot

At Instrumxx Industries our Steam Condensate Pots are widely employed to condense the fluid entering the differential pressure transmitter, thus providing good accuracy by controlling the condensate level. Our customers appreciate and are very pleased with these Pots, as they are straightforward to use and install, as well as ideal for guaranteeing the condensation of steam in the impulse lines for a precise differential pressure flow measurement on steam applications.

How to Install a Condensate Pot?

The Units should be positioned either vertically or horizontally between the primary (Flow Meter) and the secondary (transmitter/gauge), providing a barrier for the line fluid and enabling the direct detection of flow conditions. To ensure accuracy, these Units should be mounted at the same level to avoid any potential errors stemming from varying head levels of fluid in the linking pressure lines.

Here are the general steps for installing a condensate pot:

  • Identify the location for the condensate pot: The pot should be installed at a low point in the steam system where condensate can naturally collect.
  • Prepare the installation site: The installation site should be cleaned and cleared of any obstructions. Any necessary supports or brackets should also be installed at this time.
  • Install the inlet and outlet connections: The steam inlet and condensate outlet connections should be installed on the condensate pot. The connections should be properly aligned and securely tightened.
  • Connect the condensate pot to the steam system: The condensate pot should be connected to the steam system using appropriate piping and fittings. Any valves or other components necessary for the installation should also be installed at this time.
  • Test the installation: Once the condensate pot is installed, it should be tested to ensure that it is functioning properly. This can be done by introducing steam into the system and checking for any leaks or other issues.
  • Maintain the condensate pot: Regular maintenance is important to ensure the continued operation of the condensate pot. This may include inspecting the pot for damage or corrosion, cleaning the pot as necessary, and checking the inlet and outlet connections for any signs of wear or leaks.

Condensate Pot Price

Discover affordable and reliable condensate pot prices in India at Instrumxx Industries. We offer competitive prices on our high-quality condensate pots, ensuring exceptional value for your industrial needs. Visit us today to explore our range and find the perfect condensate pot at the right price for you.

Condensate Pot Manufacturers in India -

  • Catch Pot
  • Condensate Pot with Stand
  • Four Port Condensate Port
  • Three Port Condensate Pot
  • Condensate Seal Pot
  • Steam Condensate Pot
  • SS 304 Condensate Pot
  • SS 316 Condensate Pot
  • 904L Condensate Pot
  • CS Condensate Pot
  • Duplex Condensate Pot
  • Super Duplex Condensate Pot
  • Inconel Condensate Pot
  • Monel Condensate Pot
  • Hastelloy C276 Condensate Pot
  • Alloy 20 Condensate Pot
  • 6Mo Condensate Pot

Why Choose Instrumxx Industries for Your Condensate Pot Needs?

    Leaders in Manufacturing: With a legacy of unmatched knowledge, we stand as pioneers within the field of Condensate Pot Manufacturer. Our modern centers make certain precision engineering and adhere to the highest industry requirements.
  • Comprehensive Range: We provide an in-depth array of condensate pots tailor-made to satisfy numerous challenge necessities. Our variety consists of Catch Pots, Condensate Pots with Stand, Four Port Condensate Pots, and Three Port Condensate Pots. This diversity permits our customers the flexibility to choose the correct solution for his or her specific desires.
  • Customization Options: Recognizing the individuality of every task, we offer condensate pots in numerous sizes, specs, and standards. Our dedication to customization empowers our clients to choose products that seamlessly integrate into their initiatives, ensuring sure most suitable performance.
  • Nationwide Presence: With our tremendous community, we cater to clients across the period and breadth of India. No matter where in your undertaking is placed, we make sure of timely transport and dependable carrier.
  • Quality Assurance: At Instrumxx Industries, pleasant is non-negotiable. Rigorous excellent management measures at each degree of manufacturing ensure that our condensate pots meet the best standards of overall performance and sturdiness.
  • Export Excellence: Beyond serving the Indian market, we take satisfaction in being a depended-on exporter. Our commitment to nice extends globally, making us a dependable associate for international projects.

FAQ Questions

  • What are the materials used in condensate pots?

    We at Instrumxx Industries offer condensate pots crafted from a wide range of exquisite materials, such as Stainless Steel, Carbon Steel, Alloy Steel, Hastelloy, Duplex Steel, Super Duplex Steel, Monel, and Inconel. This variety guarantees that our condensate pots meet the unique requirements of diverse initiatives.

  • How to install a condensate pot?

    Installing a condensate pot is an easy process. Ensure a stable foundation, and function the condensate pot appropriately to your gadget. Our condensate pots include distinct setup tips to make the procedure trouble-free.

  • Do you have a team for quality checks?

    Yes, at Instrumxx Industries, we prioritize nice. Our devoted team conducts rigorous tests at each degree of the manufacturing system. From material choice to the final product, we adhere to stringent satisfactory standards, ensuring that our condensate pots meet the very best industry benchmarks.

  • Can I Get a Condensate Pot According to My Location?

    Absolutely! As a Condensate Pot Supplier, Instrumxx Industries can deliver their products to any location, no matter where you are. Our commitment to customer satisfaction extends nationwide.
