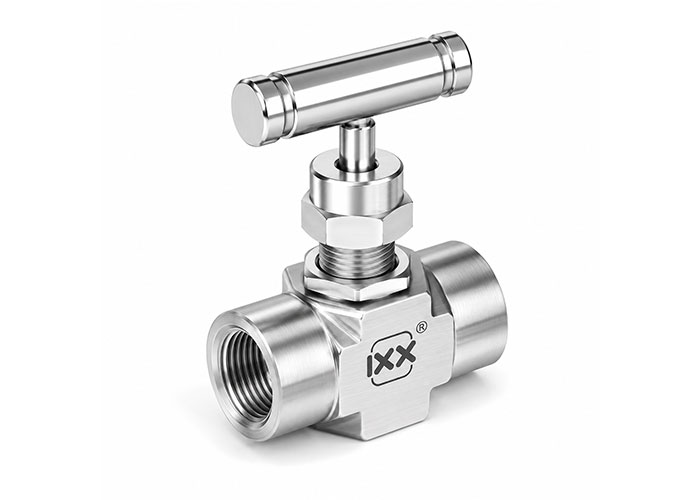

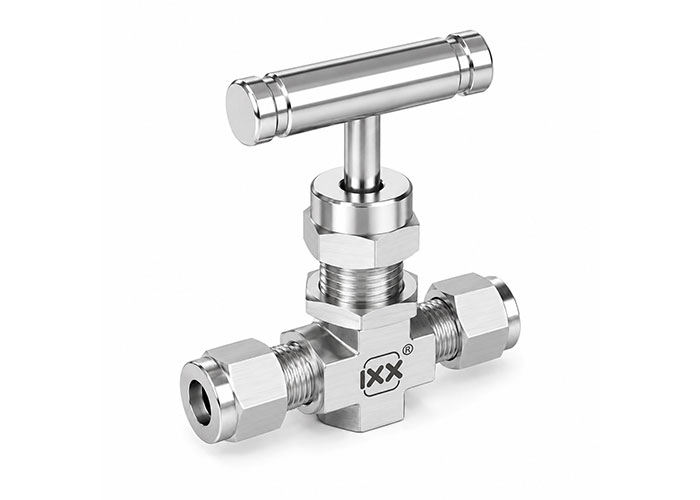

Panel Mounted

Features

Precision-engineered Integral Bonnet (IB) Needle Valves designed for enhanced safety, leak integrity, and reliable performance in critical instrumentation applications.
The one-piece integral bonnet construction eliminates potential leak paths, providing superior structural strength and increased operational safety compared to conventional bonnet designs.
Manufactured from premium forged and bar stock materials, including SS316, Duplex Stainless Steel, Monel, Hastelloy, and other special alloys for outstanding corrosion resistance and long service life.
Available with a wide range of end connections, including Male & Female NPT, BSPP, BSPT, ISO Tapered Pipe Threads, and IXX Double Ferrule Tube Fitting connections.
Designed to withstand working pressures up to 6,000 psig (414 bar), making them suitable for demanding instrumentation and process control applications.
Available in sizes ranging from 1/8" to 1/2", offering a compact solution for high-integrity fluid and gas control systems.
Supplied with PTFE gland packing as standard, with optional Graphite (Graphoil) packing for high-temperature service up to 538°C (1000°F).
Suitable for applications involving steam, oil, gas, chemicals, hydraulic fluids, water, and other industrial process media across Oil & Gas, Petrochemical, Power Generation, Chemical Processing, Marine, Pharmaceutical, and OEM industries.
NACE MR0175 / ISO 15156 compliant materials are available upon request for sour gas and corrosive service applications.
Every valve is supplied with EN 10204 Type 3.1 Material Test Certificates (MTC) and complete heat number traceability, ensuring full material verification and compliance with international quality standards.
Complete technical specifications, dimensions, and ordering information are available in the product catalogue.
